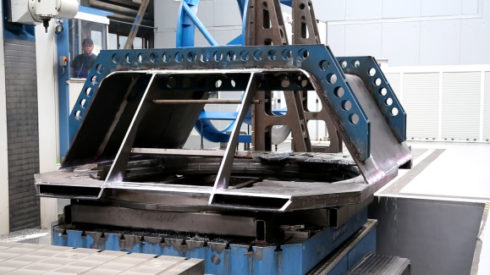

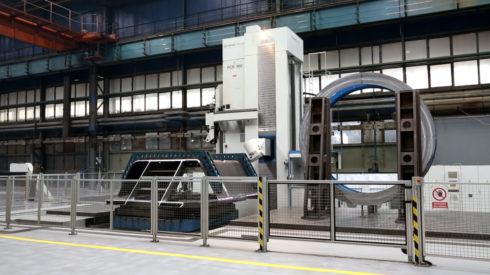

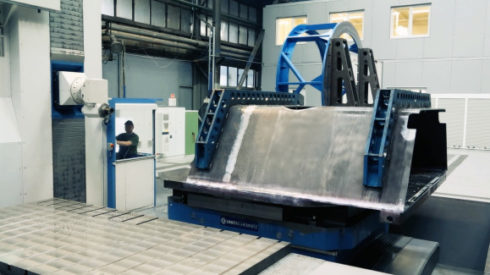

UNION PCR160 boring and milling machine
4-axis constant machining with angular head.
5-axis indexed machining of large elements.
Max workpiece dimensions: 14 000 x 4 000 x 4 500 [mm].
Max workpiece weight: 100 [t].
Equipment:
- rotary table 2 500 x 3 000 [mm],
- fixed table 7 000 x 4 000 [mm],
- fixed table 2 000 x 4 000 [mm].
Accuracy level: ± 0,02 [mm].

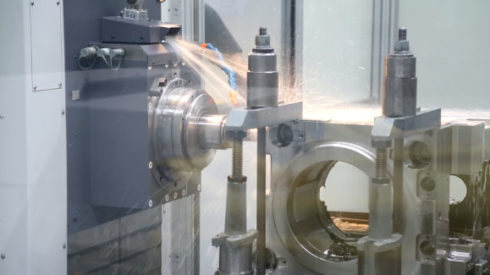

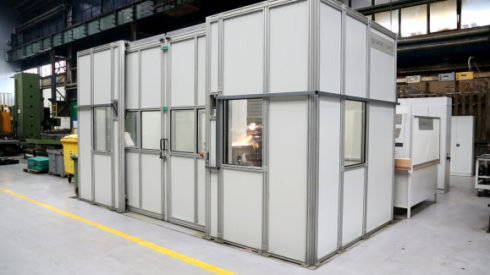

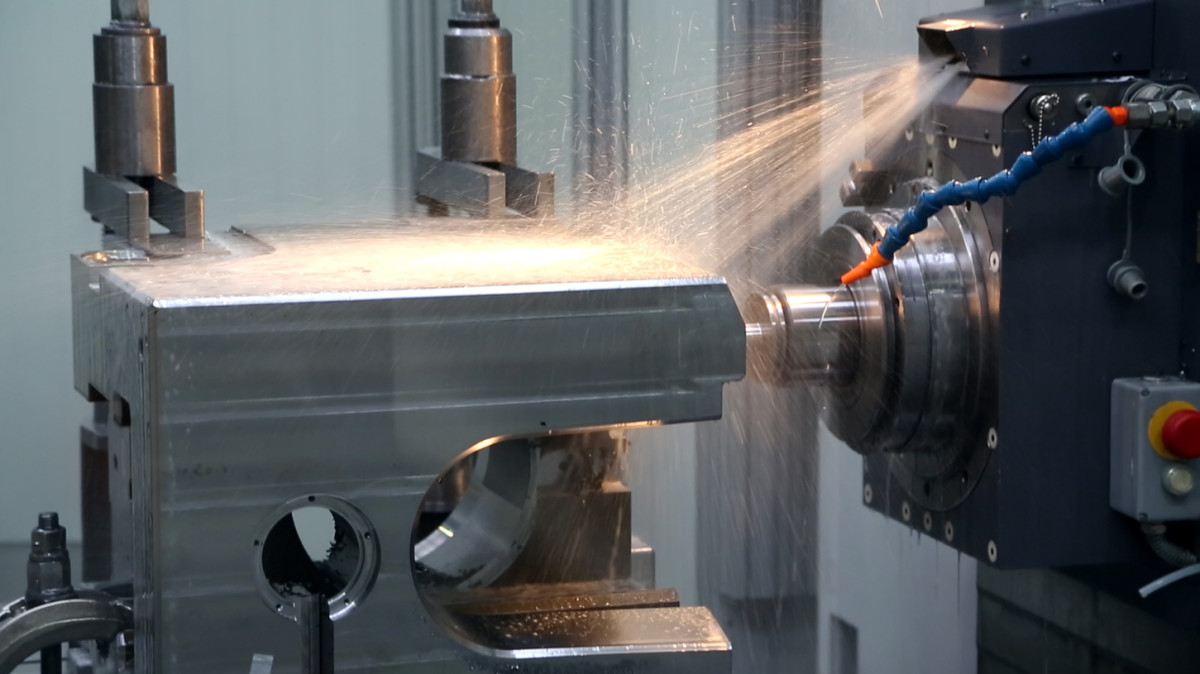

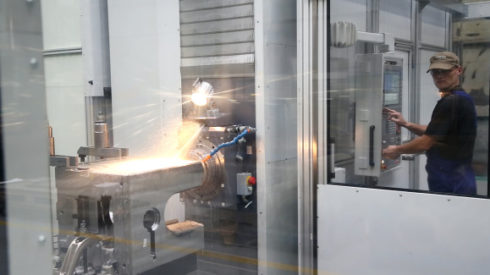

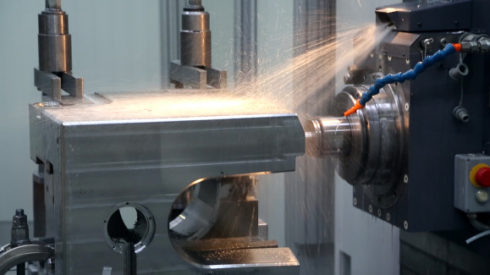

UNION KC 110 boring and milling machine
4-axis machining of parts and assemblies with possibility to apply an angular head.
- Max workpiece dimensions: 2 000 x 1 600 [mm].
- Max workpiece weight: 8 000 [kg].
- Equipment: rectangular rotary table 1 250 x 1 000 [mm].
- Accuracy level: ± 0,01 [mm].

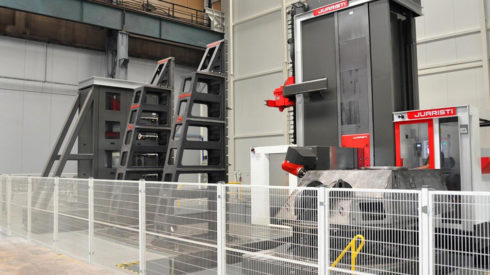

JUARISTI MP6 RAM MACHINING CENTER
- Symultaneous machining in four axis, with application of the angular head.
- Five-axis indexed processing of elements with big overall dimensions.
- Working space dimensions: 9000 x 4000 x 3500 [mm]
- Max weight of element: 100 [t]
- Max rotary table capacity: 40 [t]
- There are 2 tables in the machine:
◦ rotary 2500 x 3000 [mm], max load 40 [t]
◦ fixed 4000 x 4000 [mm]

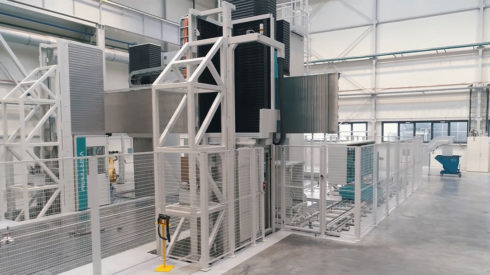

Crossrail PAMA VERTIRAM 2000 TT MC
- Clearance between columns – 4 600 mm
- Max/ clearance under the spindle- 3 785 mm
- Table travel (x axis) – 11 000 mm
- Headstock horizontal travel (y axis) – 5 600 mm
- Table: 10 000 x 3 500 mm
- Loading capacity: 50T
