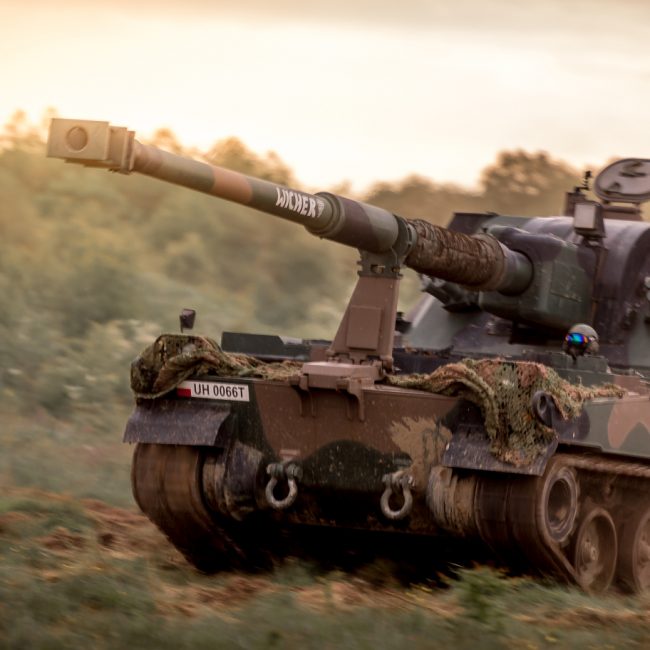

155 mm Self-Propelled Howitzer KRAB
155 mm Self-Propelled Howitzer KRAB ✓ used by Armed Forces Downloads Gallery Armaments Unit

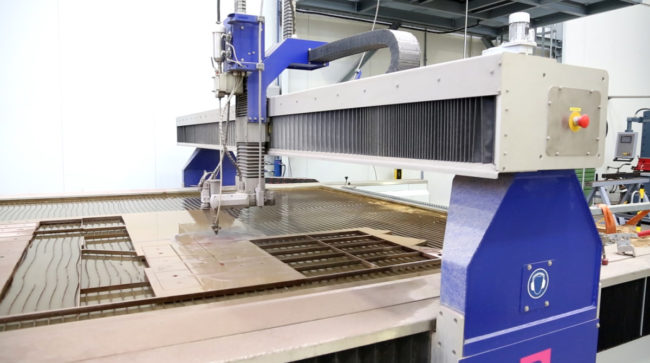

Waterjet cutting
PERNDORFER WSS 6030 Max dimensions of machined plate: 6 200 x 3 100 x 200 [mm]. Possibility of cutting phases of up to 600. Cutting of: armoured steel without heat-affected zones, ceramics, plastic.

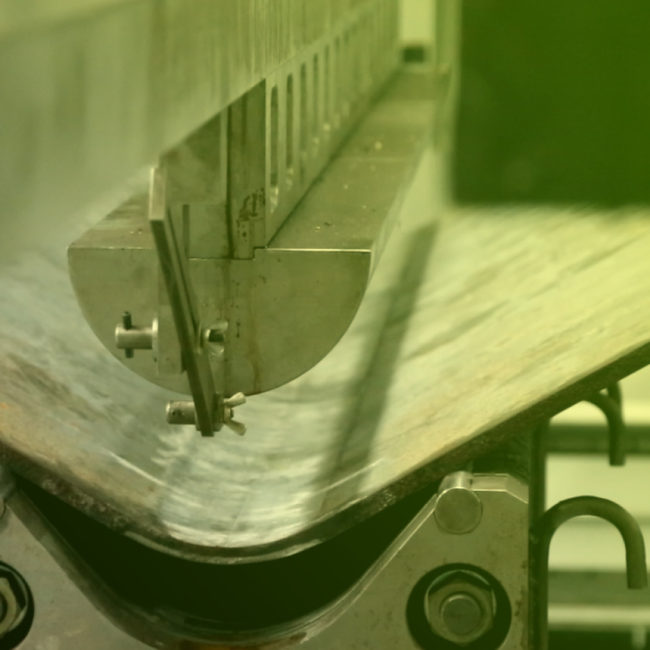

Bending and straightening of metal sheets
Press brake URSVIKEN typu EKP-M1000 7,3/6,2 Bending of metal sheets of up to 7 000 [mm] long, between supports – do 6 000 [mm]. Nominal tonnage: 10 000 [kN]. Bending also of armour steel.
Welding of non-alloy, heavy duty, armoured, stainless steels
Swivel rotary manipulator type S10HH Welding devices Welding tables Load capacity: 7 500 [kg] and 15 000 [kg]. Method: MAG PULSE. Mounting plate rotation angle and arm rotation angle: n x 3600.
Welding of aluminium
Welding devices: Tetrix 351 AC/DC Synergic – EWM TransPuls Synergic CMT 3200 – Fronius Method: TIG, non-consumable electrode MIG, metal inert gas (argon) welding Tungsten electrode WP/ Ø 2,4 [mm]. Welding wire Ø 1,0 [mm] / EN ISO 18273:4043. The…
Welding and repair and regenerative hardfacing
Swivel rotary manipulator type S10HH Welding devices Welding tables Tetrix 351 AC/DC Synergic – EWM TransPuls Synergic CMT 3200 – Fronius Repairs and regeneration of worn-out machine parts, damaged aluminium, steel and iron castings through welding and hardfacing using i.a.…
CNC Milling
DECKEL MACHO DMF360 boring and milling machine 5-axis machining, no need to change fixing. Max workpiece dimensions: 3 600 x 1 100 [mm]. Max workpiece weight: 5 000 [kg]. Equipment: rotary table Ø 1 050 [mm], rectangular table 3 600…
CNC Milling and boring
UNION PCR160 boring and milling machine 4-axis constant machining with angular head. 5-axis indexed machining of large elements. Max workpiece dimensions: 14 000 x 4 000 x 4 500 [mm]. Max workpiece weight: 100 [t]. Equipment: rotary table 2 500…
CNC drilling and milling
WHN 13 CNC drilling and milling machine 4-axis indexed machining. Max dimensions of parts and assemblies: 2 200 x 1 800 x 2 500 [mm]. Max weight of parts and assemblies: 12 000 [kg]. Accuracy level: ± 0,03 [mm].
CNC turning
CNC lathe type DP Turning of wheels, hubs, rings. Max workpiece dimensions: Ø 630 [mm], L 500 [mm]. Max workpiece weight: 500 [kg]. Accuracy level: ± 0,025 [mm]. CNC turning lathe TACCHI Turning of inner and outer shapes. Max dimensions:…
